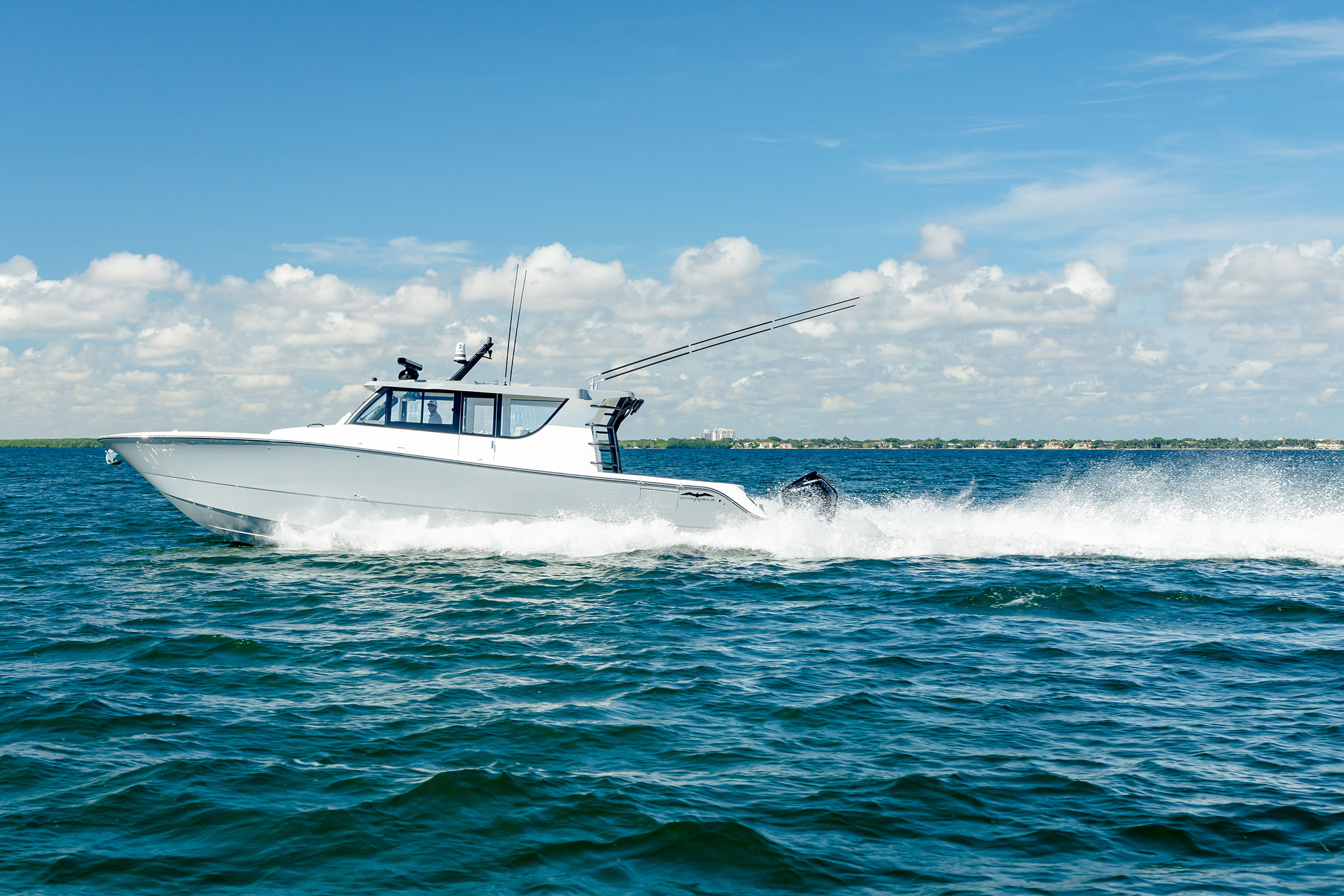

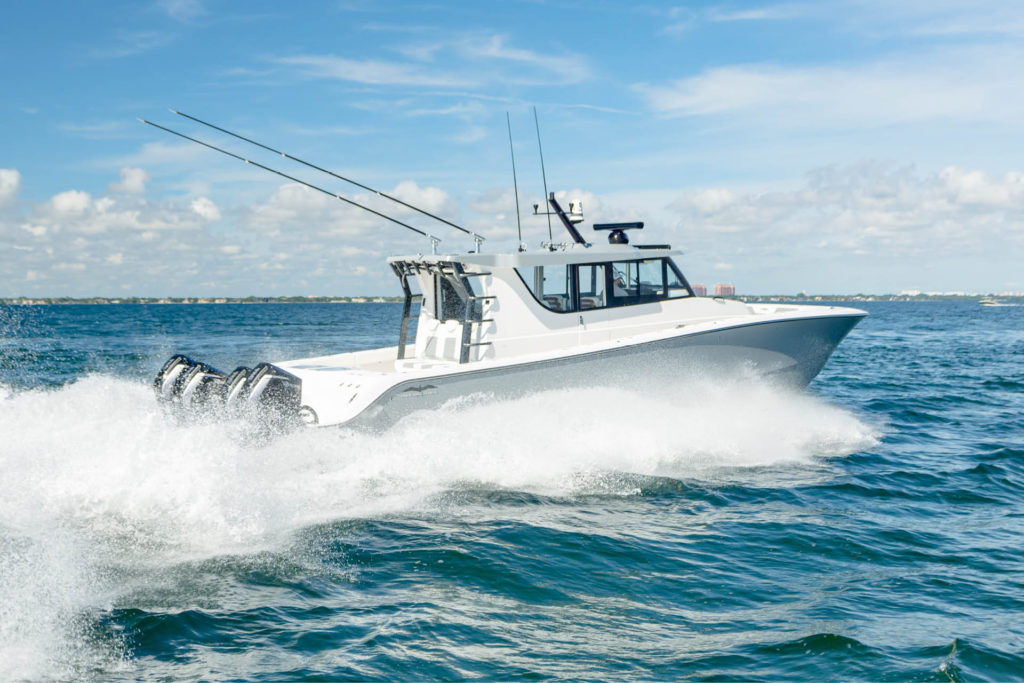

46’ Pilothouse

The game hasn’t just changed, it’s been revolutionized.

With the introduction of the 46’ Catamaran in 2020, it raised the cat segment to a whole new level. Now we’ve upped the stakes again by unveiling the first-ever production pilothouse catamaran. Offering the same range, performance and 360-degree fishability of the center console 46’ Catamaran, but equipped with the sleeping space and comfort of a comparably-sized sportfish. Introducing the 46’ Pilothouse: the new pinnacle of innovation

Specifications



Length Overall

45′ 11″

14m

Beam

12′

3.7m

Dead Rise at Transom

VARIABLE

VARIABLE

Weight with Power*

28,140 LBS

12,765 KG

Standard Fuel Capacity

1,000 GALLONS

3,785 LITRES

Maximum Horsepower

1,800 HP

1,800 HP

*Weight is listed as “ready to fish” which indicates full fuel and livewells.
blueprints for boat

KEY

Insulated Fish Box

Anchor Locker

Livewell

Bilge Access

FEATURES

HIGHLIGHTED FEATURES

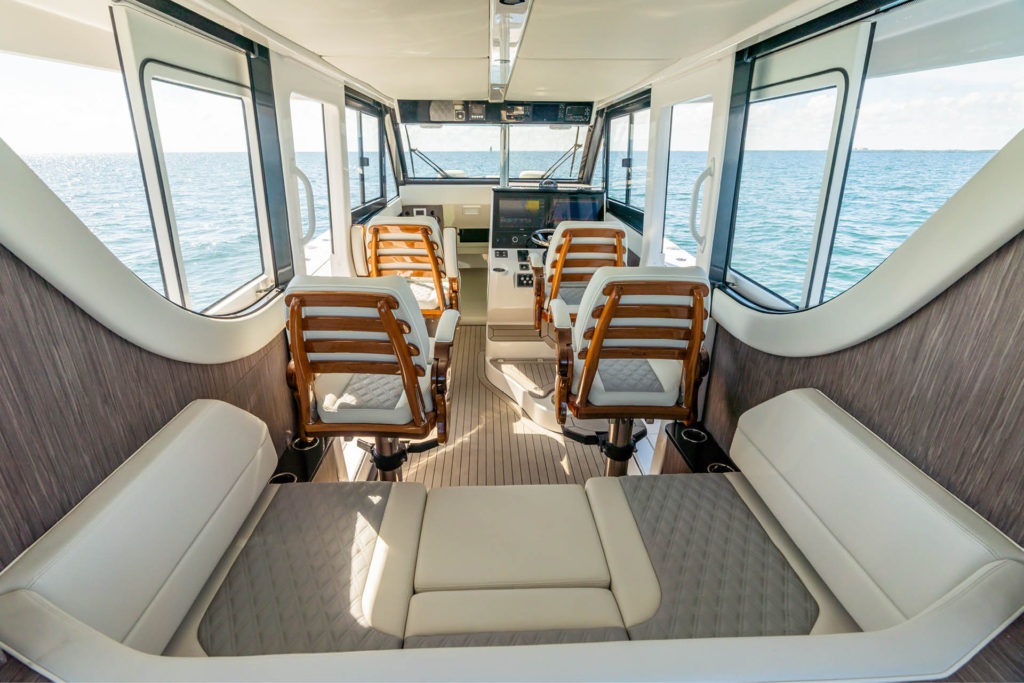

  • Enclosed Pilothouse
  • 360-Degree Fishability
  • Patented Catamaran Hull Design

STANDARD FEATURES

  • Air Conditioning
  • Generator
  • Finished Bilge
  • Above and Below Deck Livewells
  • AGM Sealed Batteries
  • Built-In Anchor Locker
  • Under Gunnel Lighting
  • High-Speed Pickup for Livewell Seachest
  • Interior Console Lighting
  • Saltwater Washdown
  • Three Automatic 2,000 GPH Bilge Pumps
  • Waterproof Switches and Circuit Breaker
  • Protected System
  • 100% Vinylester Resin Hull
  • 316 Stainless-Steel Hardware
  • Vacuum-Bagged Cored Hull Construction

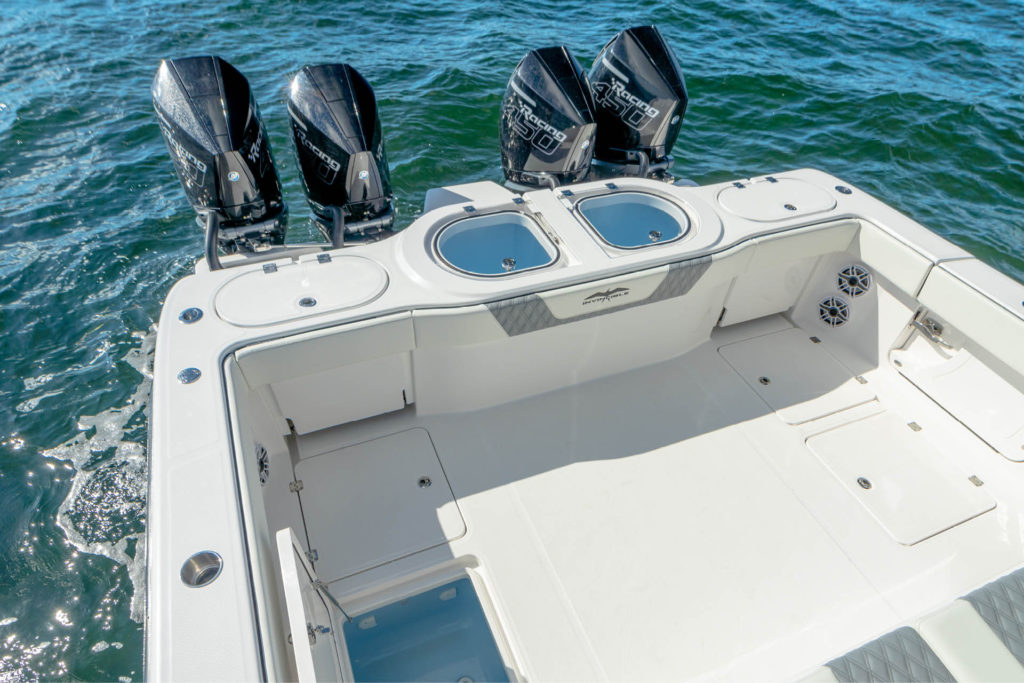

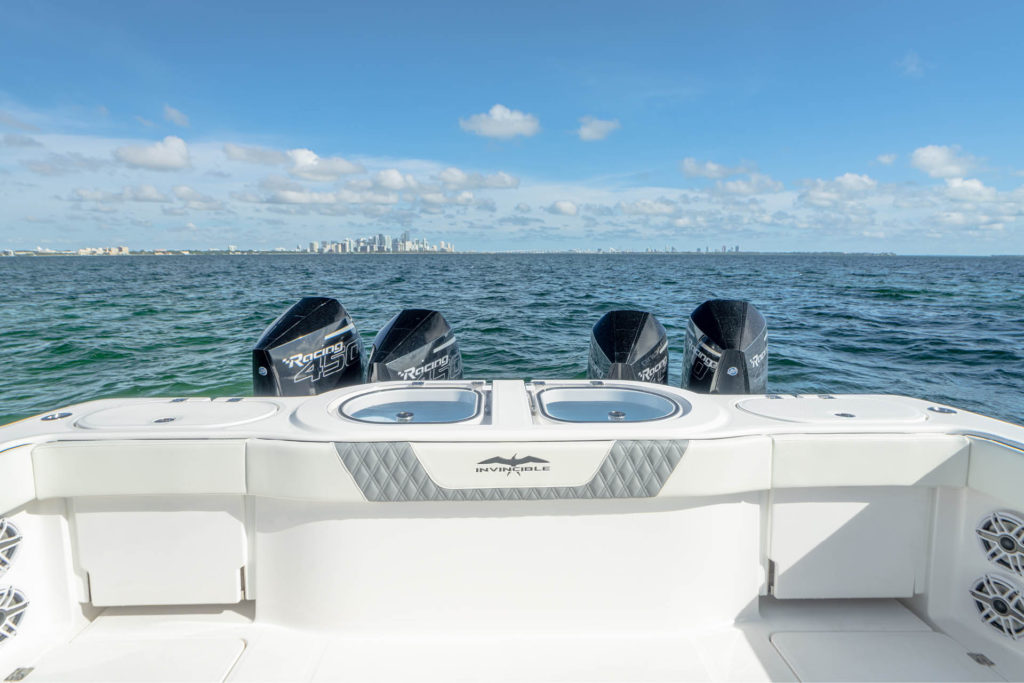

POWER OPTIONS

  • Quadruple 400 Mercury Verado
  • Quadruple 425 Yamaha XTO
  • Quadruple 450R Mercury Racing (5.44”)

CUSTOM TOP OPTIONS

  • Pilothouse Hardtop
  • Center Console Extended Hardtop
  • Rear Entry Tower w/ Dual Station
  • Hard Buggy Top Upgrade
  • LED Spreader Lights (each)
  • Rupp Top Gun Revolution Outriggers
  • Rupp Carbon Fiber Outrigger Upgrade
  • Gem Deluxe Outriggers w/ Carbon Fiber Poles
  • Gem 22′ Outrigger Upgrade (pair)
  • Single Rod Rack for Hardtop (5)
  • Kingfish Rodholders (pair)
  • Full Pilothouse Glass Windshield
  • Double Rod Rack Upgrade (needs rear support)
  • Tigress Electric Outriggers w/ Gemlux Poles

FISHING ACCESSORY OPTIONS

  • Rod Holders on Side of Gunwale Additional (each)
  • Rod Holders on Console Vertical (each)
  • Rod Holders on Coffin Box (each)
  • Heavy Duty Swivel Rod Holders (each)
  • Livewell Seachest 2 pumps
  • Livewell Seachest 3 pumps
  • Livewell Seachest 4 pumps
  • Large Livewell Seachest 6 pumps
  • Additional High Speed Pickup
  • Above Deck Livewell Connections (each)
  • Clear Plexiglass Lid for Livewell (Floor Well)
  • Under Gunnel Rod Racks (each)
  • Under Gunnel Gaff Holders (each)
  • Electric Reel Outlets (each)
  • Colored Livewell (each)
  • Livewell Light (each)
  • Built-in Tuna Tube Upgrade (each)
  • In Floor Livewell – 70 gallons (each)

SEATING OPTIONS

INTERIOR

  • 4 Helm Chairs & Small Rear U-Shape
  • 2 Helm Chairs & Large Rear U-Shape
  • ShoXS Pedestals (per helm chair)
  • U-Shape Table (requires large U-Shape)

EXTERIOR

  • Cockpit Rear Mezzanine Seat
  • Cockpit Rear Prep Station
  • Leaning Post Chill Plate
  • Front Fold-Out Storage Lockers
  • Rear Fold-Out Jump Seats

ENHANCEMENT AND CONVENIENCE

  • Fancy Rigid Rubrail with Stainless Insert
  • Hull Side Dive Door w/ Ladder
  • Dive Ladder – Transom Pullout Style
  • Fresh Water Washdown
  • Hose Coil Kits for Fresh and Salt Washdowns
  • Additional Hose Coil Kit for Salt Washdown
  • Additional Hose Coil Kit for Fresh Washdown

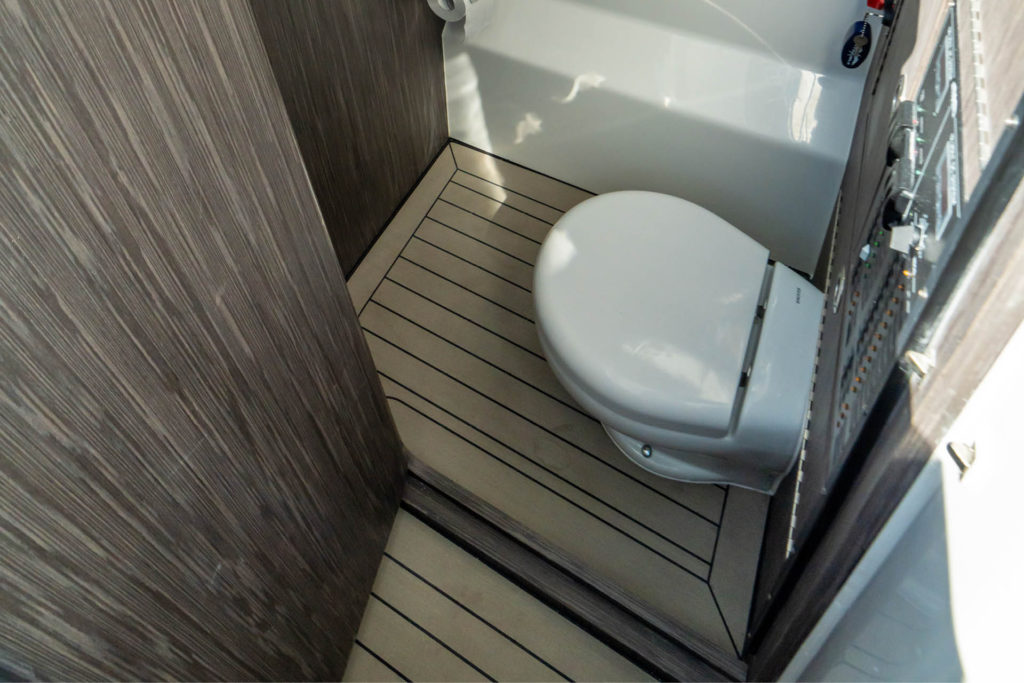

  • Deluxe Electric Head in Console
  • Windlass in Hull w/ Custom Anchor and Bracket
  • SS Towing Eye Strike Plate Package
  • Under Water Lights LED – Blue & White (each)
  • PC1800 Battery System Upgrade
  • Battery Charger with Galvanic Isolator
  • Stainless Steel Cupholders on Gunwale (each)
  • Ultra Junior Float Switch Upgrade (each)
  • Upper Console Keeper

COLORS AND CANVAS OPTIONS

  • Custom One Color Gelcoat for Hull
  • Full Coaming Bolsters

COVER AND SHADE OPTIONS

  • Forward Bahama Shade
  • Aft Bahama Shade
  • Motor Cover (each)
  • Second Station Box Cover
